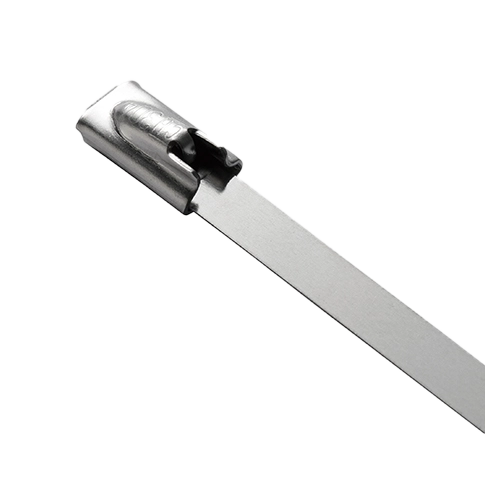

STAINLESS STEEL CABLE TIE
Material: Stainless Steel 316SS.
Suit for engineering, aviation, ship area.
Feature: Fast locking function, can be quick & easy installed.

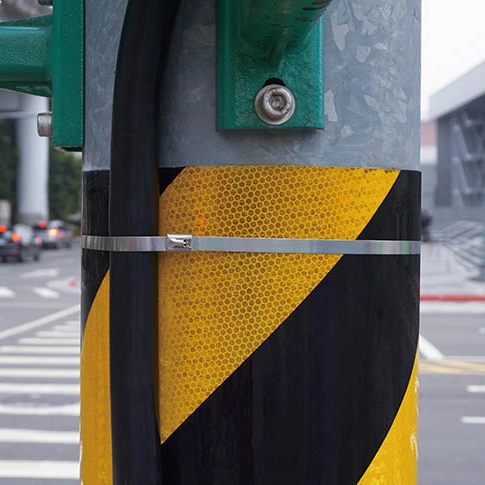

Designed for indoor and outdoor, Apply for severe environment like high-humidity, high-temperature, chemically, and coldness conditions.
※Other sizes available upon request.
| Part.No | Length | Width | Thinckness | Max.Bundle Dia. | Min. Loop tensile strength | operating temperature | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | kgf | lbf | Max. | Min. | |
| MLG-130ST | 129 | 5.08 | 4.45 | 0.18 | 0.25 | 0.01 | 33 | 1.3 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-200ST | 200 | 7.78 | 4.45 | 0.18 | 0.25 | 0.01 | 50 | 1.97 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-300ST | 300 | 11.81 | 4.45 | 0.18 | 0.25 | 0.01 | 76 | 2.99 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-370ST | 370 | 14.57 | 4.45 | 0.18 | 0.25 | 0.01 | 102 | 4.02 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-520ST | 520 | 20.47 | 4.45 | 0.18 | 0.25 | 0.01 | 156 | 6.14 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-680ST | 680 | 26.77 | 4.45 | 0.18 | 0.25 | 0.01 | 207 | 8.15 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-840ST | 840 | 33.07 | 4.45 | 0.18 | 0.25 | 0.01 | 257 | 10.1 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1050ST | 1050 | 41.34 | 4.45 | 0.18 | 0.25 | 0.01 | 319 | 12.56 | 45.4 | 100 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-200HD | 197 | 7.76 | 7.96 | 0.31 | 0.25 | 0.01 | 50 | 1.97 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-300HD | 300 | 11.81 | 7.96 | 0.31 | 0.25 | 0.01 | 76 | 2.99 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-370HD | 368 | 14.49 | 7.96 | 0.31 | 0.25 | 0.01 | 102 | 4.02 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-450HD | 450 | 17.72 | 7.96 | 0.31 | 0.25 | 0.01 | 135 | 5.31 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-500HD | 500 | 19.69 | 7.96 | 0.31 | 0.25 | 0.01 | 150 | 5.93 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-680HD | 680 | 26.77 | 7.96 | 0.31 | 0.25 | 0.01 | 207 | 8.15 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-720HD | 720 | 28.35 | 7.96 | 0.31 | 0.25 | 0.01 | 216 | 8.5 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-840HD | 840 | 33.07 | 7.96 | 0.31 | 0.25 | 0.01 | 257 | 10.1 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1020HD | 1020 | 40.16 | 7.96 | 0.31 | 0.25 | 0.01 | 312 | 12.3 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
| MLG-1050HD | 1050 | 41.34 | 7.96 | 0.31 | 0.25 | 0.01 | 319 | 12.56 | 113.4 | 250 | 500˚ C (932˚ F) | -80˚ C (-112˚ F) |
